Let AI read your After Effects project, build animations, inspect the results, and save successful operations as reusable tools.

ae-mcp is an open-source CEP extension that connects a running After Effects project to the Model Context Protocol (MCP). Chat with Claude, Codex, or OpenCode inside the panel, or connect an external MCP client to work with compositions, layers, keyframes, and expressions.

Download v0.11.0 · Install · Tool reference · Changelog

What it does

• Read real project state: inspect projects, compositions, layers, properties, and keyframes with pagination, sorting, and filtering.
• Build and edit animations: run ExtendScript for general AE operations; use native AEGP tools for exact time and object locators.
• Inspect composition pixels: export PNG frames from AE, sample multiple times in a grid, and compare A/B pixel differences.
• Recover failed operations: use checkpoints of saved projects, captured failure scripts, and a recoveryId to inspect, correct, or restore state.
• Keep reusable tools: successful scripts become replayable candidates that can be saved, pinned, archived, exported, and imported; prompt skills are supported too.
• Follow execution: use the panel's approvals, activity timeline, conversation history, and diagnostic export.

The workflow is read → execute → preview → correct → save for reuse. The AI reads current state through the AE host, including unsaved changes, and checks results using both project structure and composition previews.

A complete workflow

Try a task like this in a test project:

Create a new composition with the text Hello AE. Over one second, fade it in
and move it upward into the center. Read back the keyframes, then check the
animation with a multi-frame preview.

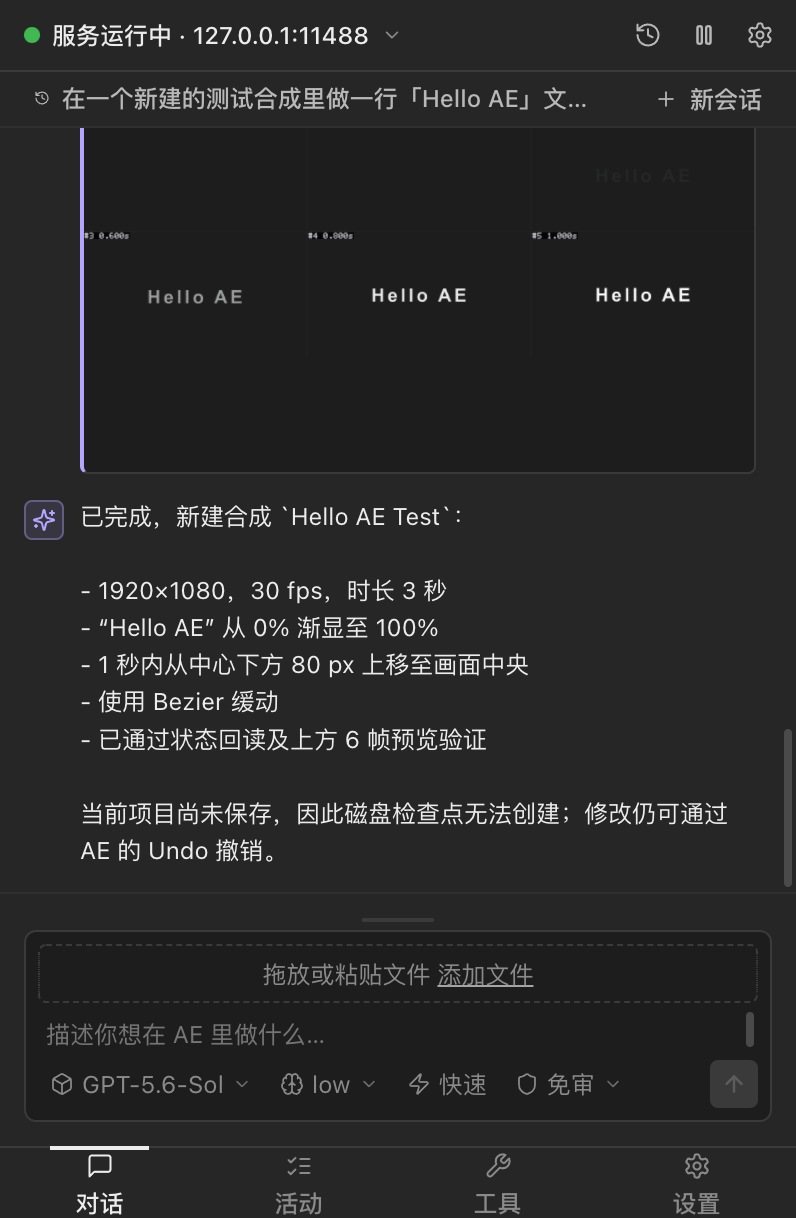

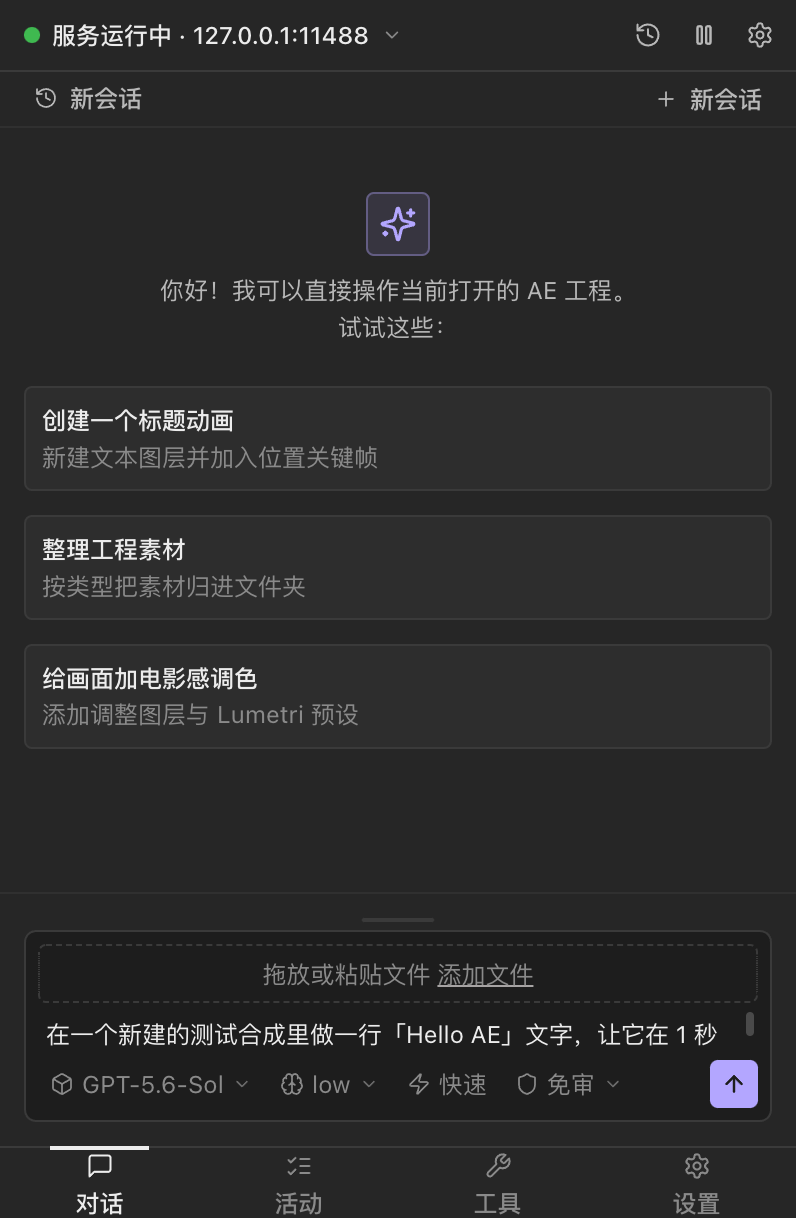

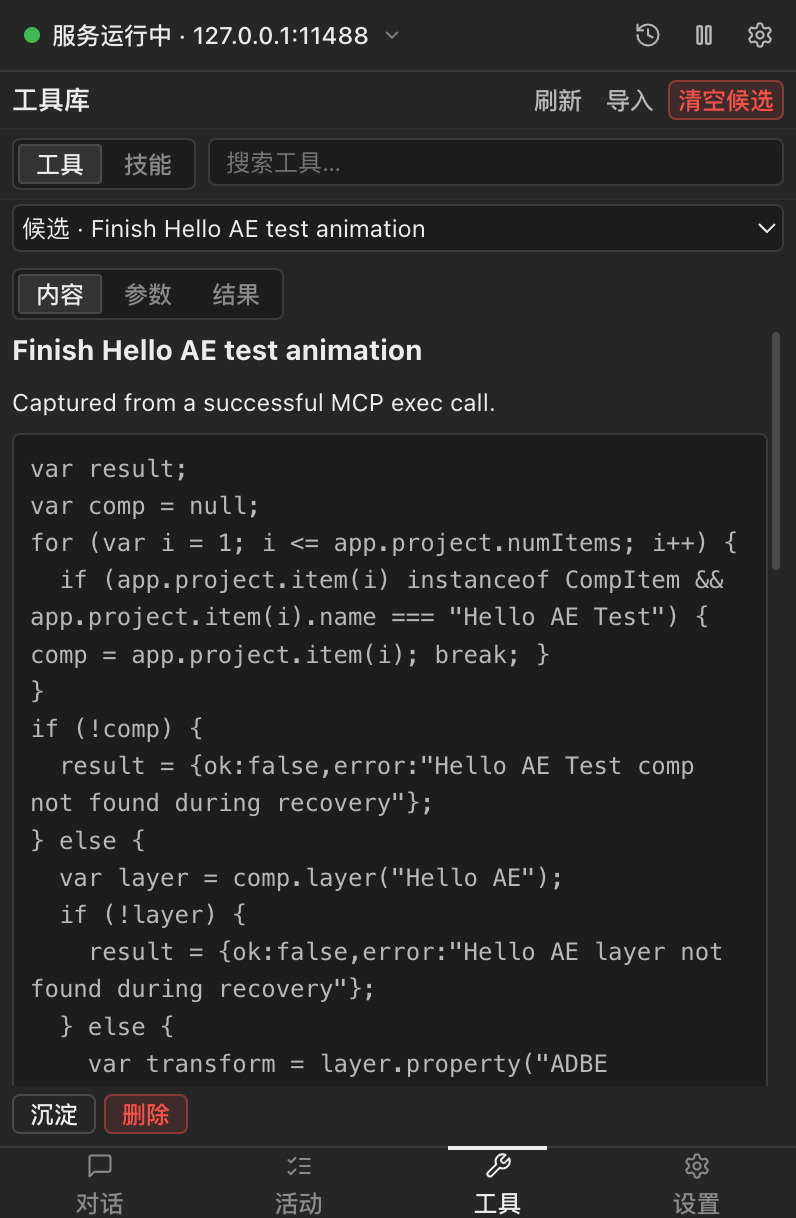

The screenshots show task entry, a six-frame preview, and the successful script captured in the Tool Library. These are actual v0.10.7 screens illustrating the workflow; v0.11.0 additions are described below.

Describe the task	Inspect the result	Keep a reusable tool

What's new in v0.11.0

• Multiple instances and parallel previews: external clients can discover, launch, and route to multiple AE instances. Different projects can run concurrently; each project has one active writer, while read-only workers inspect and preview fixed checkpoint snapshots.
• Session handoff: after a panel turn or external AE call finishes, another eligible session can take over the idle project. In-flight calls, engine draining, and uncertain writes continue to block handoff.
• AI working directory: new chats default to the current AEP's folder, falling back to the user home folder if the project is unsaved or the directory is not writable. Choose a folder or restore the default in Settings; existing chats retain their directory.
• Undo and recovery fixes: fixes for mismatched Undo groups and checkpoint recovery contexts. Rendering must run separately, outside an Undo group.
• Native and worker reliability: improved cold-start native diagnosis, connection timeout recovery, and Windows background worker startup and shutdown cleanup.
• 16 public tools, up from 13: adds ae_instances, ae_workspace, and ae_readJob, with the matching [email protected] stdio connector.

The release provides a shared Windows/macOS ZXP, native plug-ins for Windows x64 and macOS arm64, and checksums. The final Mac package completed scoped read/write, Undo, rendering, recovery, and installation checks on AE 26.3x87 arm64. Mac worker scenarios remain unverified. See the v0.11.0 release notes for verification scope and known limitations.

Install and first run

1. Download and install ae-mcp-panel-v0.11.0.zxp from the v0.11.0 release.
2. For ae_nativeExec, download the native plug-in from the same release: AeMcpNative-v0.11.0-windows-x64.aex for Windows x64, or AeMcpNative-v0.11.0-macos-arm64.plugin.zip for macOS arm64. Extract the Mac ZIP and install AeMcpNative.plugin. Native plug-ins ship separately from the ZXP; see Install for destinations and macOS download quarantine handling. The Mac package requires macOS 14.0 or later. Both platforms use the same roughly 60 MB ZXP, which includes the Windows OpenCode runtime; macOS uses OpenCode from PATH.
3. Start After Effects and open Window > Extensions > ae-mcp. Keep the panel open while an external client uses MCP.
4. Configure Claude, Codex, or OpenCode in panel Settings, or connect an external client as described below.

The panel itself is the MCP service. No separate repository server is needed. External clients must run on the same machine as After Effects because the default endpoint is loopback.

Client connections

For one running panel, clients supporting Streamable HTTP can connect to the URL shown in the panel. For example, Claude Code with the default address:

claude mcp add --transport http ae http://127.0.0.1:11488/mcp

For instance discovery and launch, or a stdio client such as Claude Desktop, use the matching connector (requires Node.js 18 or later):

{
  "mcpServers": {
    "ae": {
      "command": "npx",
      "args": ["-y", "[email protected]"]
    }
  }
}

Without an explicit URL, the connector discovers the installed extension's multi-instance entry. It does not install or update the extension. Discover or explicitly start an instance with ae_instances, bind the project with ae_workspace, and pass the returned context_id on subsequent AE calls. Setting --url or AE_MCP_HTTP_URL pins forwarding to one endpoint. Closing the panel is an intentional disconnect and does not automatically reopen AE.

Alternatively, run the dependency-free stdio shim shipped in the installed extension. This example pins one endpoint. Set command to system Node and point args at the extension directory's host/stdio-shim.js:

{
  "mcpServers": {
    "ae": {
      "command": "node",
      "args": ["<installed-extension>/host/stdio-shim.js"],
      "env": {
        "AE_MCP_HTTP_URL": "http://127.0.0.1:11488/mcp"
      }
    }
  }
}

Refresh or reconnect the client after setup, then call ae_status to verify.

How it works

The MCP service runs directly in the CEP panel's Node host, at http://127.0.0.1:11488/mcp by default. Additional instances register their own endpoints. The host manages approvals, project contexts, the Tool Library, and logs.

flowchart TB
    panel["In-panel AI chat"] --> host["CEP Node MCP host"]
    client["External MCP client"] -->|"HTTP / stdio connector"| host

    host --> jsx["ExtendScript"]
    host --> native["AEGP"]
    host --> worker["Read-only workers"]

    jsx --> project["AE project reads / writes"]
    native --> precision["Exact time and object locators"]
    worker -->|"Checkpoint snapshot"| preview["Reads and PNG previews"]

ExtendScript handles general operations. The native AEGP plane retains 23 fixed primitives for exact rational time and generation-bound object locators. Multiple instances do not permit simultaneous writers to the same project; worker results always describe their specified checkpoint snapshot. See Architecture for details.

Panel capabilities

The CEP host advertises 16 public MCP tools:

Successful ae_exec and ae_execRecover scripts are captured as deduplicated, rerunnable Tool Library candidates. ae_toolSave promotes or creates reusable JSX and prompt-skill artifacts; the Tools page manages candidates and saved artifacts, including import/export. Usage counters and funnel events show what gets replayed or retained, while the placeholder guard points compacted conversations back to exact candidates and stops repeated placeholder retries.

The panel also provides approval modes, activity history, diagnostics, log export, and built-in Claude, Codex, and OpenCode channels. Persistent host state defaults to ~/.ae-mcp; developers and tests can relocate it with AE_MCP_STATE_DIR.

The public MCP tools are served by the CEP host. Writes should be followed by an independent readback; potentially side-effecting failures must be reconciled before retry, and Undo must be executed and verified separately. A timeout cannot guarantee immediate interruption of synchronous ExtendScript; PNG previews may omit Guide layers. See Reference for multi-frame and difference parameters, recovery rules, and snapshot jobs.

Development

Install the two Node workspaces and build the panel:

(cd plugin/host && npm ci)
(cd plugin/panel && npm ci && npm run build)

For a local CEP deployment, use the platform-specific script after the host and panel are built:

.\scripts\install-plugin-dev.ps1

./scripts/install-plugin-dev-macos.sh

The Adobe After Effects C/C++ Plug-in SDK is a developer-supplied input and must remain outside this repository. Verify it before building the native plug-in:

node scripts/package/ae-sdk-input.mjs verify-input --platform macos-arm64

For the frozen native plane, build into a new directory outside the repository. The installer keeps transaction state under native-plugin-dev-v1; retain the returned transaction ID if you install the result:

AE_SDK_ARCHIVE=/absolute/path/AfterEffectsSDK.zip
AE_SDK_ROOT=/absolute/path/AfterEffectsSDK
BUILD_DIR=/private/tmp/ae-mcp-native-dev
TRANSACTION_ID="paste-the-transaction-id-here"
node native/ae-plugin/build-macos.mjs \
  --sdk-archive "$AE_SDK_ARCHIVE" \
  --sdk-root "$AE_SDK_ROOT" \
  --output "$BUILD_DIR"
# The install state root is native-plugin-dev-v1.
node native/ae-plugin/install-dev-macos.mjs install --artifact-dir "$BUILD_DIR"
node native/ae-plugin/install-dev-macos.mjs rollback \
  --transaction "$TRANSACTION_ID"

The native plane is frozen; generated AEGP protocol files are checked in and the capability-package code-generation pipeline is not part of normal development.

Tests and packaging

Run focused Node contracts locally:

node --test scripts/package/test/verify-windows-zxp-stage.test.mjs
node --test scripts/package/test/zxp-payload-audit.test.mjs

The Windows ZXP staging command copies the panel, host, JSX, shared modules, icons, generated host assets, and the pinned OpenCode runtime staged by node scripts/package/fetch-opencode-runtime.mjs. It verifies the host's exact Express 4.22.2 dependency and signs the ZXP once:

.\scripts\package-zxp.ps1 -SkipSigning

The signed ZXP must contain no nested native binary; the bundled opencode.exe is the one explicitly allowed executable. The packaging script fails above 80 MB, and a release with the runtime is roughly 60 MB.

See Install, Reference, Tool Library, Architecture, Workflow, and Release for maintained operational and developer details.
